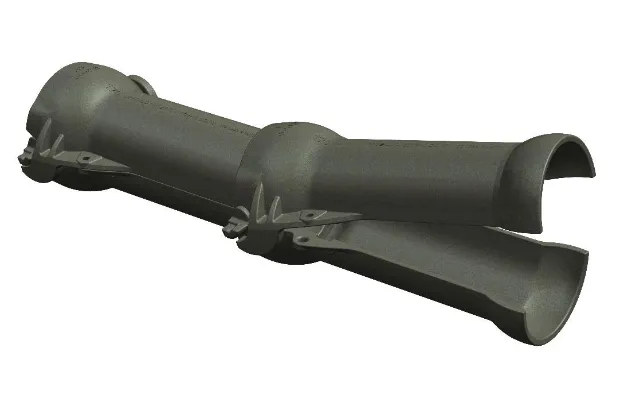

PS170-SP/480/10
(Single Part)

Articulated Pipe (Split Pipe)

Contact Us for a Quote

Traditional clip-together Protectorshell convenience in a single-part design (SP) to minimize inventory and simplify underwater laying in poor visibility, etc. The clean, robust design you have come to expect from Protectorshell with added convenience and simplicity.

Specifications
Product NameProtectorshell Articulated Pipe
Product TypeCable Protection System (CPS)
ModelPS170-SP/480/10 (Single Part)
Segment Length - Overall554mm
Effective Installed Length/segment pair480mm
Minimum Internal Diameter170mm - recommended for cables up to 157mm diameter
Maximum External Diameter311/322mm
Wall Thickness10mm
MaterialDuctile Iron to AS1831/ISO 1083/JS/400-12/S
Tensile Strength / Elongation400MPa / 15% elongation
Impact Resistance12m Drop test or 26kg
Minimum Bend Diameter4.0m Nom / 3.00m Min
Weight per Segment30kg
Weight per installed metre (air)60kg
Weight per installed metre (water)52.3kg
