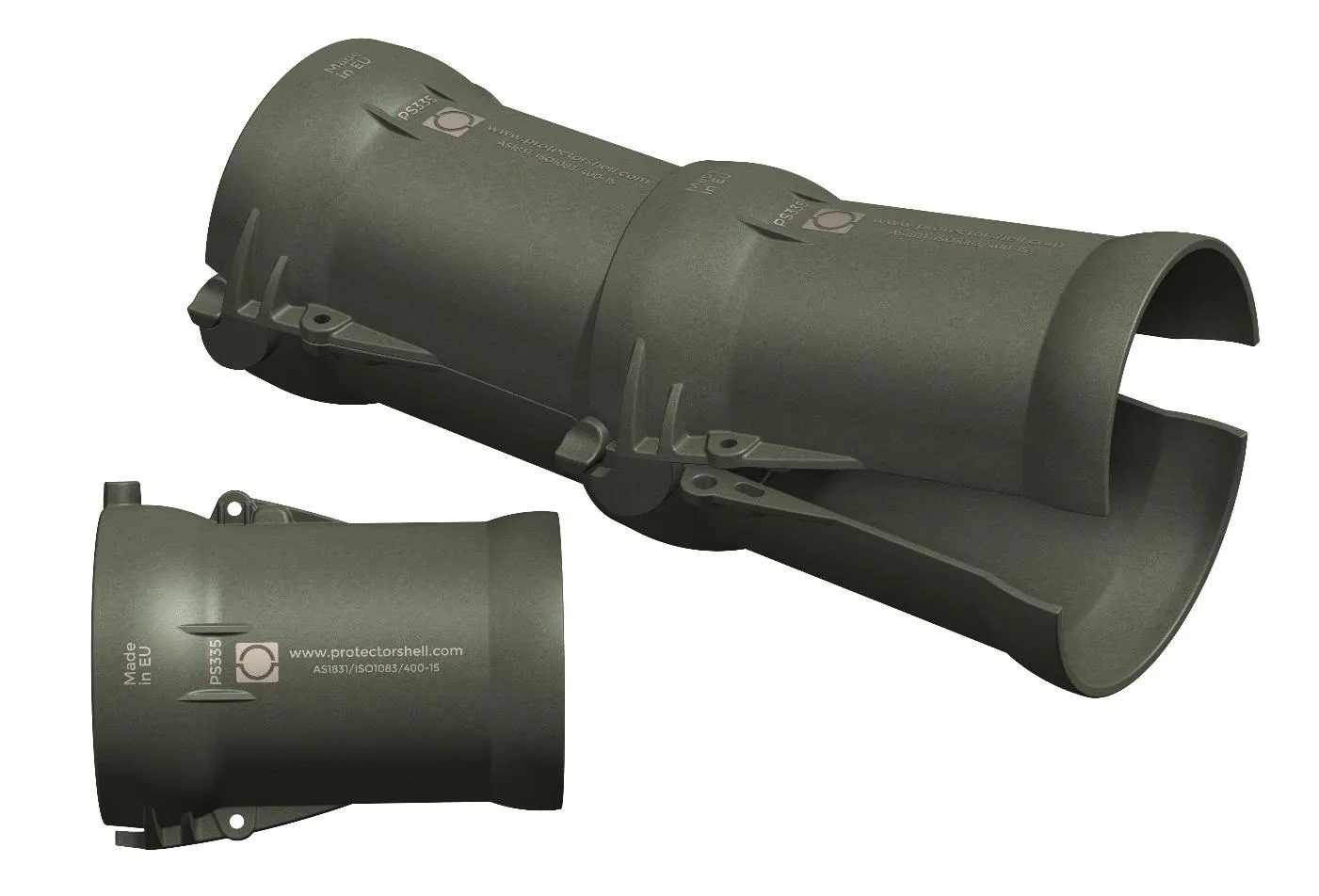

PS335-SP/500/10
Articulated Pipe (Split Pipe)
Download Specifications (PDF)
Contact Us for a Quote
Specifications
Product Name
Protectorshell Articulated Pipe
Product Type
Cable Protection System (CPS)
Model
PS335-SP/500/10
Segment Length - Overall
575mm
Effective Installed Length/segment pair
500mm
Minimum Internal Diameter
335mm - for cables up to 320mm diameter
Maximum External Diameter
484mm
Wall Thickness
10mm
Material
Ductile Iron to ISO 1083
Tensile Strength / Elongation
400MPa / 15% elongation
Impact Resistance
12m Drop test or 26kg
Minimum Bend Radius
3.3m Min.
Weight per Segment
55.3kg
Weight per installed metre (air)
110.6kg
Weight per installed metre (water)
95.1kg
Fasteners
M16x75 Bolt and M16 Nyloc Nut
Material: Stainless Steel G316/A4
Recommended usage: 1 pair per 10 metres of installed pipe
